Diesel Engine 1HP 2HP Self Priming Water Pump With Wheels Trailer

Basic Information

Place of Origin:	China
Brand Name:	Gempump
Certification:	ISO9001,CE,SGS
Model Number:	25CYZ-20

Minimum Order Quantity:	1 set
Price:	500 USD/SET
Packaging Details:	Plywooden box
Delivery Time:	5-8 days.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000 SET /Month

Get Best Price Contact Now

Product:	Self-Priming Centrifugal Water Pump	Material:	Cast Iron/stainless Steel
Power:	Electric Motor/Diesel Engine	Voltage:	AC220V,380V,415V
Application:	Petrochemical Industry	Warranty:	1 Year
Theory:	Centrifugal Pump	Pressure:	High Pressure
Highlight:	1hp Self Priming Water Pump , Wheels Trailer Self Priming Water Pump , 2hp self priming water pump

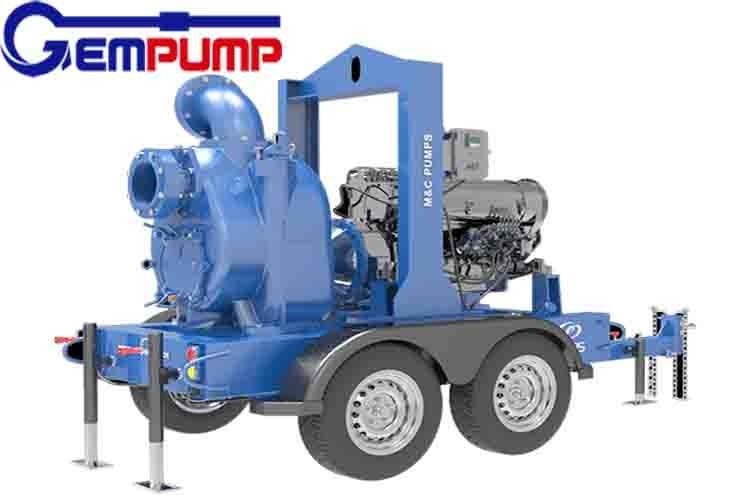

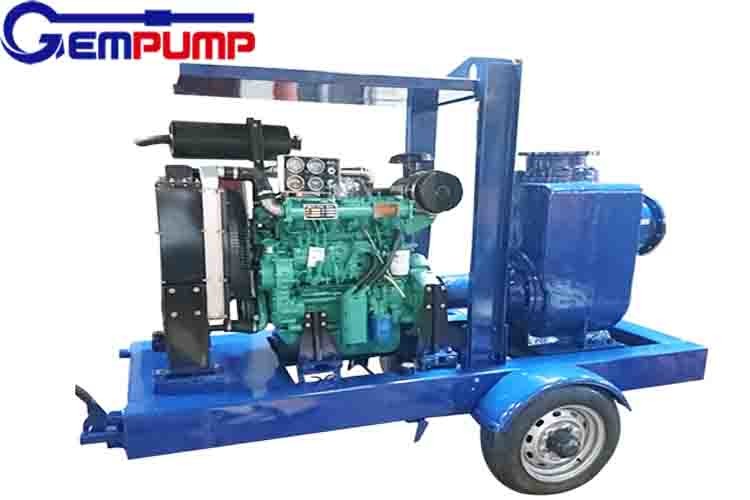

Self-priming Diesel Engine Trash Water Centrifugal Pump with Wheels Trailer for Irrigation Flood

Self-priming Trash Water Pump Products Description

T Series Gorman-rupp Self-priming Trash Pump with Diesel Engine, 2(4) Wheels Trailer Optional

T series self-priming trash pump is our latest generation product base on US technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
The trash pump is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service
design have made T Series pumps the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to re-priming automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.

Main Character
1. Beautiful shape and fine structure, reliable performance
2. With strong capacity of self priming, no need to equip with flap valve
3. Non-clog , and with powerful capacity of passing big solid
4. The unique lubrication oil mechanical seal cavity makes the performance more reliable
5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
6. When operate, the pump can self-priming with gas and liquid at the same time.
7. Low rotary speed, reliable operation, long useful life, easily maintenance.
8. Very competitive price, high quality, small MOQ, fast delivery, OEM required, exporting plywood case.

Product Paramenters

Inlet/Outlet	2”(50mm), 3"(80mm), 4"(100mm), 6"(150mm), 8"(200mm), 10"(250mm), 12"(300mm)
Impeller Diameter	158.74mm-457.2mm
Rotary Speed	550RPM-2150 RPM
Flow Rates	8m3/h-1275m3/h	20GPM-5500GPM
Head	6m-63m
Horsepower	1HP-125HP
N. W	92KG-998KG
G. W	114KG-1066KG
Solid Passing	20.63mm-76.2mm
Material	cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
Diesel Driving	Water cooled or air cooled
Method of Connection	Self-priming pumps are available as basic units or may be flex-coupled, V-belt drivenor engine mounted.
Drive Variation	Cummins, Deutz, Ricardo, or Chinese Diesel, Electric Motor
Skid Mounted on Trailer	2 wheels or 4 wheels Trailer/Trailor
Package	Exporting plywood case

Self-Priming Diesel Engine Trash Water Centrifugal Pump Model List

Model	Speed	Max.Flow	Max.Head	Power(hp)	Net Weight	Gross Weight	Max. Particle size
Model	r/min	m3/h	m	HP	KG	KG	mm
T-2	1150-2900	46	36	1HP-10HP	92	114	44.45
T-3	650-2150	107	35	1HP-20HP	183	205	63.5
T-4	650-1950	163	36	1HP-30HP	259.5	280	76.2
T-6	650-1550	330	33	2HP-40HP	364	391	76.2
T-8	650-1350	600	34	7.5HP-75HP	581	634	76.2
T-10	650-1450	775	40	10HP-150HP	635	663	76.2
T-12	650-1250	1275	42	20HP-180HP	998	1066	76.2
H-3	850-2150	85	62	1.5HP-25HP	214	225	20.63
H-4	850-2150	148	58	3HP-40HP	272	297	28.57
H-6	850-1950	308	57	5HP-75HP	413	437	31.75

FAQ

Q: What type of company Gempump is?
A: Gempump is a manufacture and trading company, has factories in Shijiazhuang, with export and import license.
Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump,slurry pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.
Q: What is your payment terms?
A: Western Union, Paypal, T/T, L/C, etc.
Q: Can you provide OEM, ODM service?
A: Yes,we can make products according to your requirements.
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
