Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Certification: | ISO9001 CE |
| Model Number: | FZB |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Material: | PTFE, FEP | Warranty: | 1 Year |
|---|---|---|---|
| Media: | Acid,Chemical | Application: | Metal Smelting, Acid Washing,etc |
| Highlight: | FZB Self Priming Water Pump,Fluorine plastic Liner Self Priming Pump,FZB Self Priming Acid Pump |
||

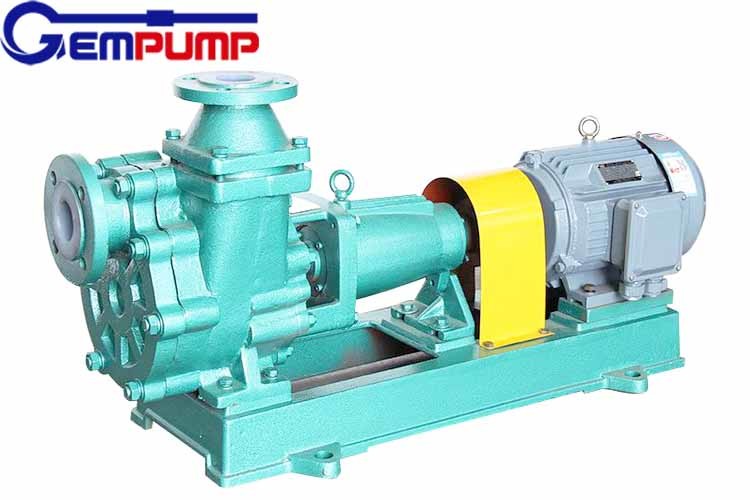

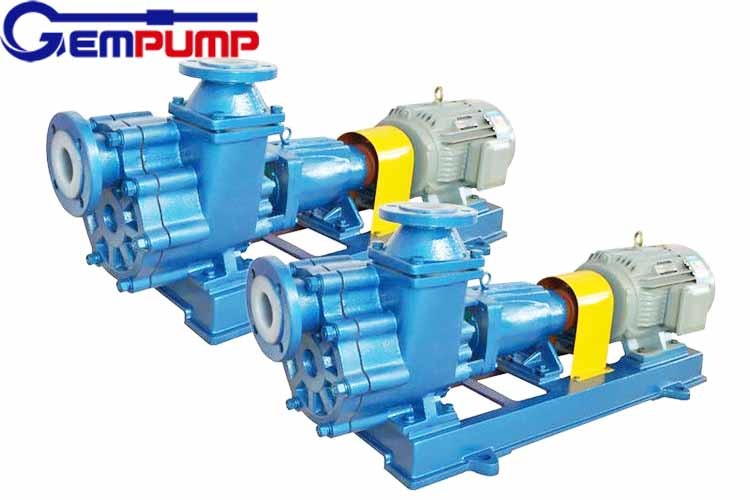

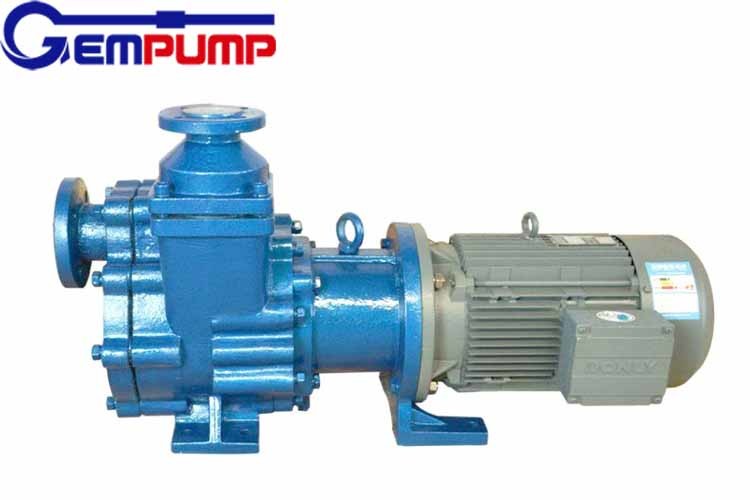

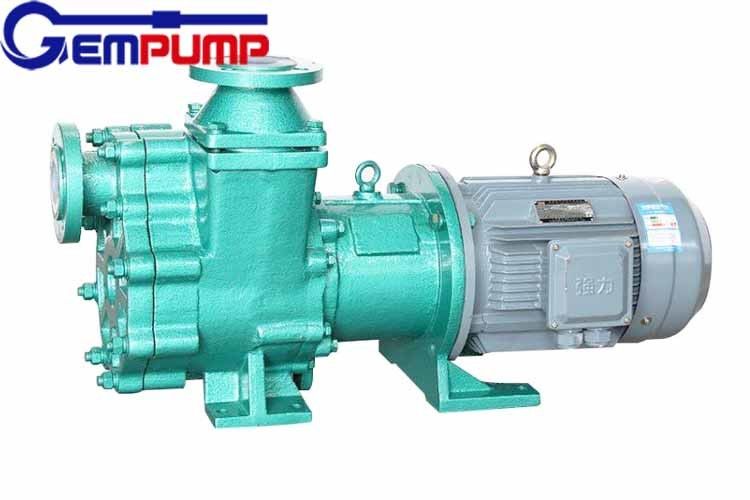

Anti-Corriosion Type Fluorine Plastic Liner Self Priming Acid Pump
FZB Self-priming Pump:
FZB is our factory's independent R&D product. It is particularly applicable for low sump situation. This pump is installed above the sump and tank. It is very easy to operate and maintain.
Media:
self priming sulphuric acid centrifugal pump Industry:
Range of application:
Notice:
Self priming sulphuric acid centrifugal pump Model and Parameter:
| Item | Model | Flow (m3/h) |
Head (m) |
Efficiency (%) |
NPSHa (m) |
Inlet x outlet (mm) | Self-priming height ( m) | Self-priming time ( seconds) |
Speed z (RPM) |
Power (KW) |
Pump and motor weight (kg) |
| 1 | 40FZB-20 | 5 | 22 | 35 | 3.00 | 40x50 | 1 | 180 | 2900 | 3 | 160 |
| *8 | 20 | 42 | |||||||||
| 12 | 17 | 40 | |||||||||
| 2 | 50FZB-20 | 8 | 22 | 35 | 3.00 | 50x50 | 1 | 180 | 2900 | 3 | 160 |
1. The pump is widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids.
2. This pump can be used in transporting harsh and strong erosive medium of any density such as vitriol, hydrochloric,organic dissolvent, corrosion medium and reducing agent etc.
3. It is one of the latest erosion proof equipments in the world.
4. Non-ferrous metal metallurgy, Automobile pickling, Caustic soda, Pesticide, Electronics, Papermaking,Rare-earth separation, Pharmaceutical, Pulp production, Sulfuric acid industry, Environmental protection industry.
