Vertical Deep Well Industrial Centrifugal Pumps 3 Phase 15m3/H

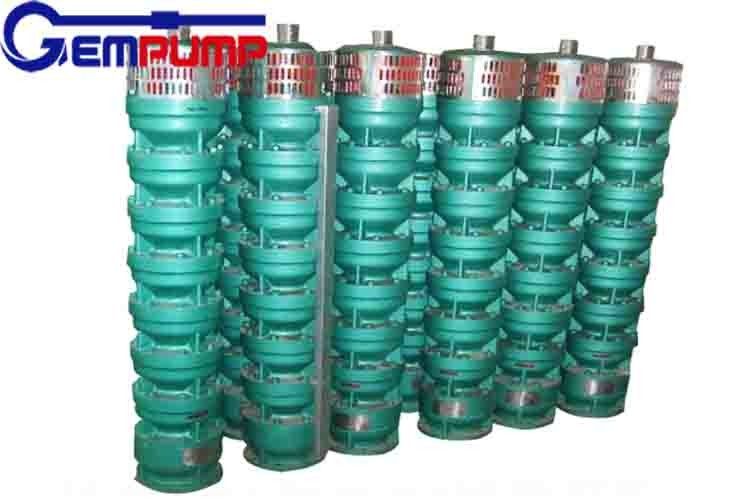

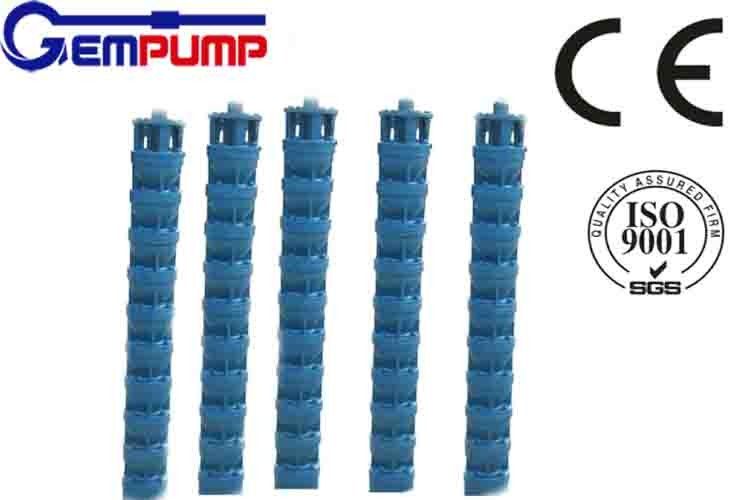

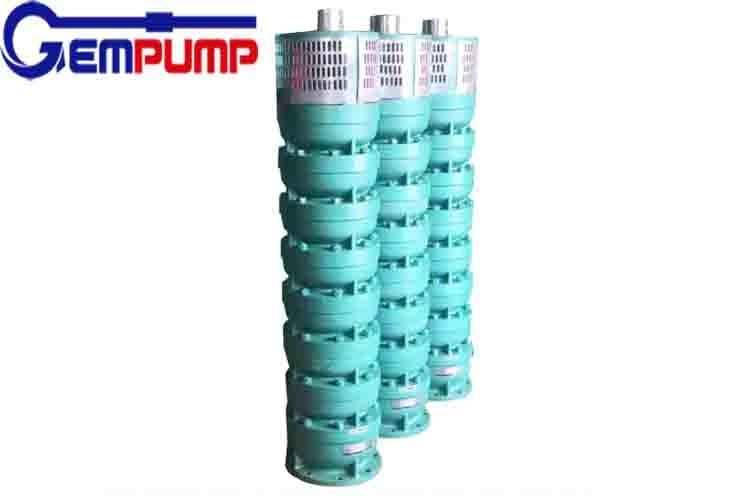

3 Phase Electric Vertical Submersible Deep Well Borehole Water Pump (QJ)

Vertical Submersible Deep Well Water Pump Description
QJ/QJR Series are vertical multi-stage submersible pumps designed for pumping clean water from deep wells, rivers, reservoirs and mines etc., as well as applications in industrial water supply, agricultural irrigation projects,fire fighting and so on.
QJR is specially designed for geothermal applications featured by heatresisting,anticorrosion and anti-aging properties, water temperature up to
90ºC.

Pump performance:

Pump Capacity: 2 ~ 500 m3/h
Pump Head: 19 ~ 510 m
Motor Power: 3 ~ 90kw
Pump Material: Cast iron, Stainless Steel

QJ Deep Well Water Pump Model Meaning
200QJ32-60/4
200: Engine Base Diameter (mm)
QJ: Submersible Deep Well Pump
32: Rated Flow (m³/h)
60: Rated Head
4: Stage

Borehole Water Pump Construction & Features
1. Compact vertical centrifugal multi-stage design with perfect standardization and
Generalization, easy operation and convenient maintenance.
2. A complete electric submersible pump includes a water pump set, electric motor, adischarge piping, water-proof cable and a control panel.
3. Submersible motor filled with clean water for cooling and lubrication. And the pressure regulation switch, located at the bottom of motor, shall automatically operate to balance the pressure fluctuation caused by temperature variations.
4. A sand slinger and oil-sealed skeleton are equipped at the upper part of motor to form a closed operating system for the motor, thus preventing any sand to penetrate into the motor.
5. Water injection hole as well as air release hole are designed at the upper part of the motor, and water release hole at bottom (lower) part.
6. Thrust bearing and collar are designed at lower part of motor to stand the weight of thesquirrel caged rotor and the axial thrust residual.
7. Water-proof electromagnetic wiring for stator with excellent insulation.

Typical Applications
Water drawing tool submerging into water to work
Drawing the ground water from deep well
Drawing engineering of river reservoirs, channels and so on.
Irrigation of farm land
Solar submersible

Vertical Submersible Deep Well Water Pump Model

FAQ

1. How to get our quotation in time, pls answer following questions:

1)What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~

2) What's the flow or capcity (m3/h, L/m)?

3) What's the discharge head (m, feet, Mpa, bar )

If you do not have any request, we will do as our normal standard.

4) Contact us to get the quotation

2.OEM: Ok

3. MOQ: 1set

4. Package: Standar export Plywood Case or Styrofoam with Carton

5. Shipping ways: By sea, By air, By express

6. Lead time: 3-15days

7. Term of payment: 100% T/T,  L/C, West union

8. Warranty Period: One year, except spare parts
