Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | PT-20-0.05 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Vertical RPP Circulating Chemical Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoro Plastic, Teflon,RPP | Seal: | Mechanical Seal |
| Highlight: | 50W Vertical Centrifugal Pump,Electroplating RPP Vertical Centrifugal Pump,50W Vertical chemical resistant pump |
||

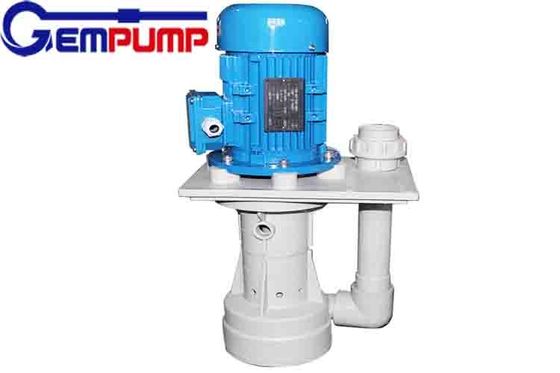

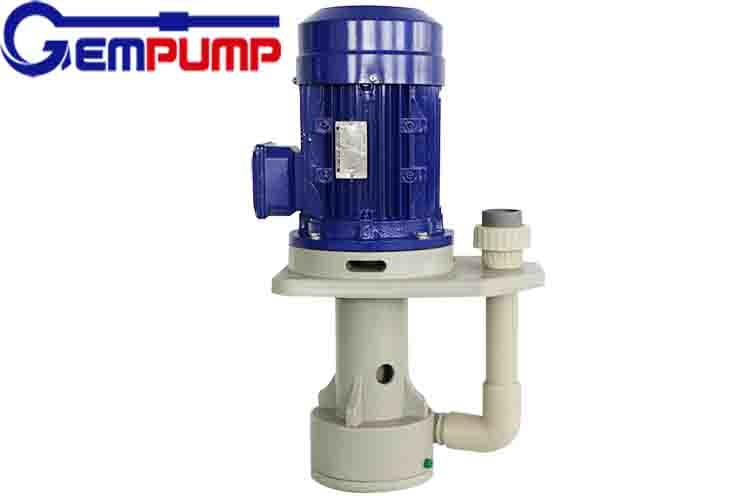

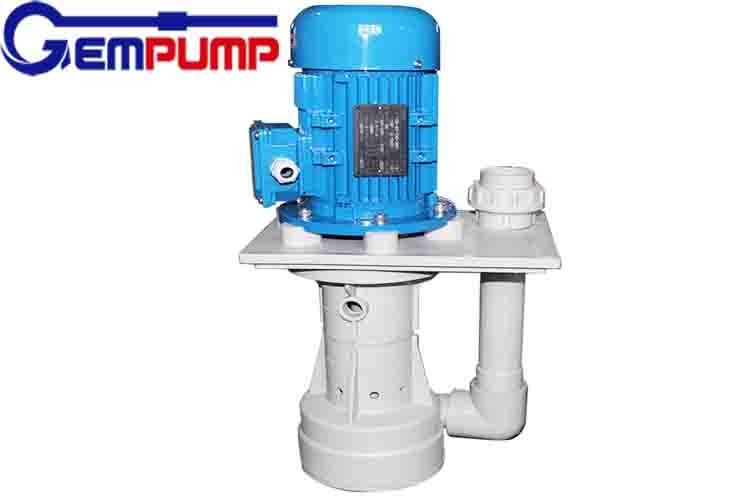

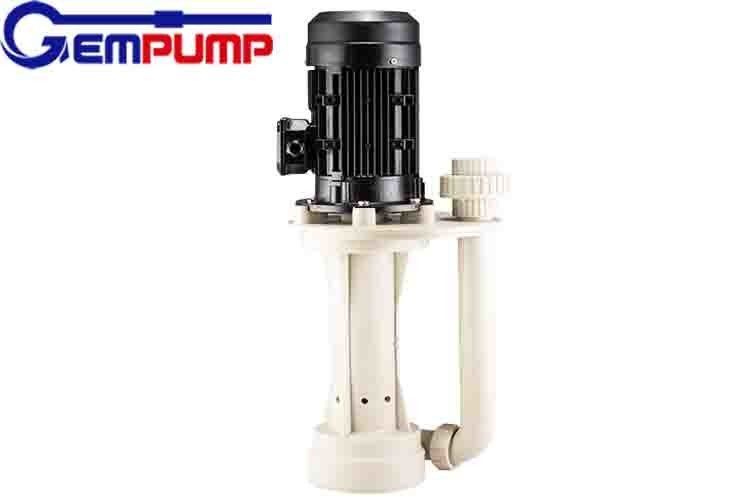

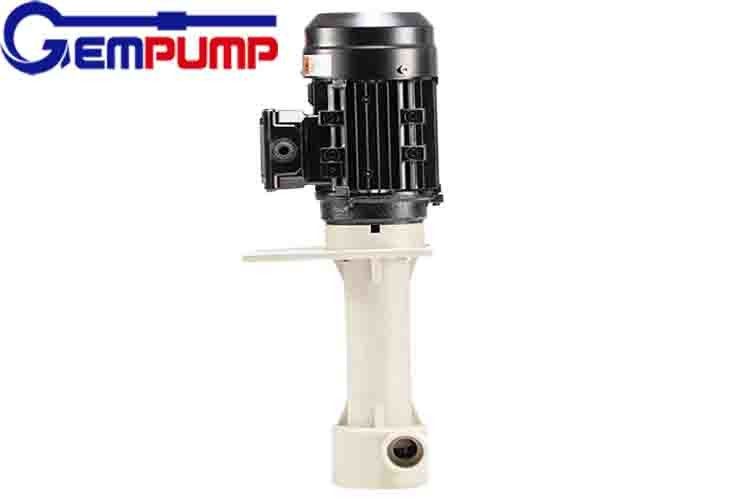

Vertical Electroplating Processing RPP Chemical Property Circulating Centrifugal Pump
Product description:
1. Using FRPP, CPVC, CFRPP, PVDF various plastic materials for injection molding, can resist most of the chemical properties, acid and alkali resistance.
2. It is suitable for all kinds of acid and alkali liquid circulation, cooling, spray washing equipment, waste gas tower, etching line, and waste water treatment.
3. It can be used idling and will never be damaged by idling.
4. There is a dry shaft seal design to protect the motor from acid gas from entering and damaging the accessories.
5. Suitable for circulating transportation of electroless nickel, chemical copper and various special electroplating solutions.
6. Can be used with filter connection
|
Product Name
|
Pump
|
|
Material
|
Reinforced Polypropylene
|
|
Color
|
White
|
|
Outlet Diameter
|
40mm
|
|
Rated Flow
|
20m³/h
|
|
Rated Head
|
15m
|
|
Voltage
|
380v
|
Vertical Chemical Circulating Centrifugal Pump Model
| model | inlet/outlet | max flow (L/min) | max head (M) | voltage | power | ||
| mm | 50hz | 60hz | 50hz | 60hz | v | w | |
| PT-20-0.05 | 25*20 | 25 | 28 | 3.5 | 4 | 220/115 | 50 |
| PT-20-0.095 | 25*20 | 28 | 38 | 4 | 5 | 220/115 | 95 |
| PT-20-0.125 | 25*20 | 32 | 60 | 5 | 6 | 220/115 | 125 |
| PT-20-0.18 | 25*20 | 70 | 80 | 6 | 7 | 220/115 | 180 |
| PT-20-0.25 | 25*20 | 80 | 100 | 6.5 | 8 | 220/115 | 250 |
| PT-32-0.375 | 40*32 | 160 | 200 | 7 | 9 | 220/115 | 375 |
| PT-32-0.75 | 40*32 | 200 | 250 | 12.5 | 15 | 220/115 | 750 |
| PT-40-1.5 | 50*40 | 250 | 350 | 15 | 17 | 220/115 | 150 |
| PT-40-2.2 | 50*40 | 320 | 400 | 20.5 | 22 | 220/115 | 2200 |
Vertical Chemical Circulating Centrifugal Pump Features
1. The injection molding of frpp / PVDF plastic material can be used for most chemical liquids and acid - base;
2. Suitable for various acid and alkali liquid circulation, cooling, spray washing equipment, waste gas tower, etching machine, electroless plating, no electrolytic nickel and other special occasions
3. The pump uses dry shaft seal, can be used for idle operation, idling will not damage the motor, the pump body has the design of oil seal, ensure that acid gas will not easily enter the motor shaft, so as to protect the motor and prolong the service life of the motor
4. The motor shaft is made of sus and titanium shaft, directly from the inside of the motor through the special process to ensure the concentricity and durability of the normal work.
5. Unique channel design, high pressure, high efficiency, low noise, no leakage, easy maintenance; 6. it is suitable for the installation and use in the groove / groove, and can also be used with the filter;
