Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | IHF65-50-125 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | IHF End Suction Centrifugal Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoroplastic, Polyethylene,PTFE | Seal: | Mechanical Seal |
| Highlight: | IHF End Suction Centrifugal Pump,DN25 End Suction Centrifugal Pump,ISO9001 Chemical Centrifugal Pump |
||

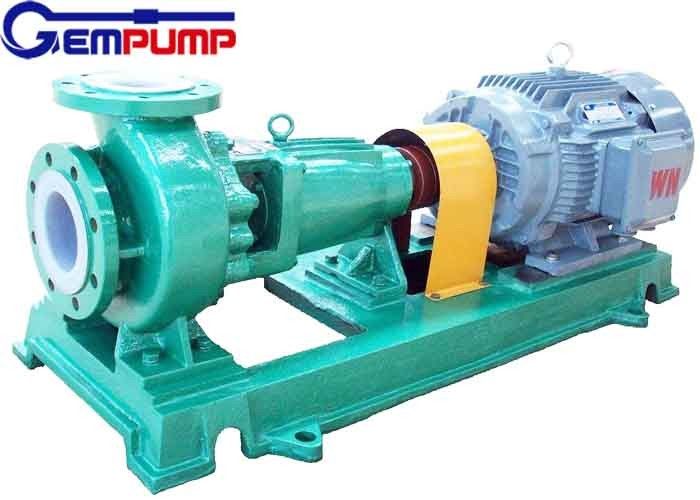

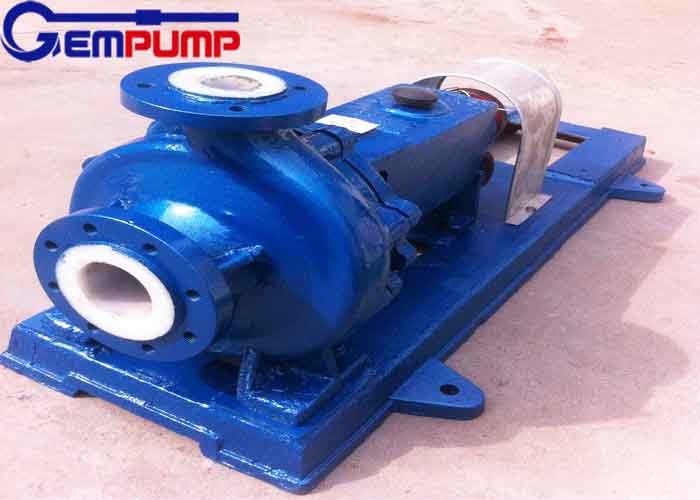

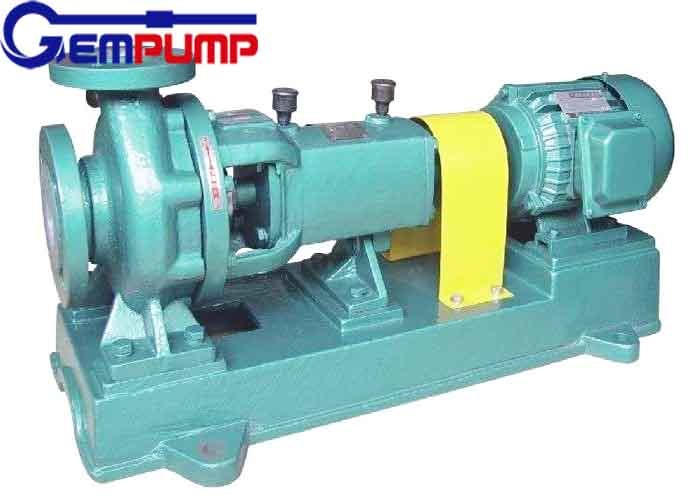

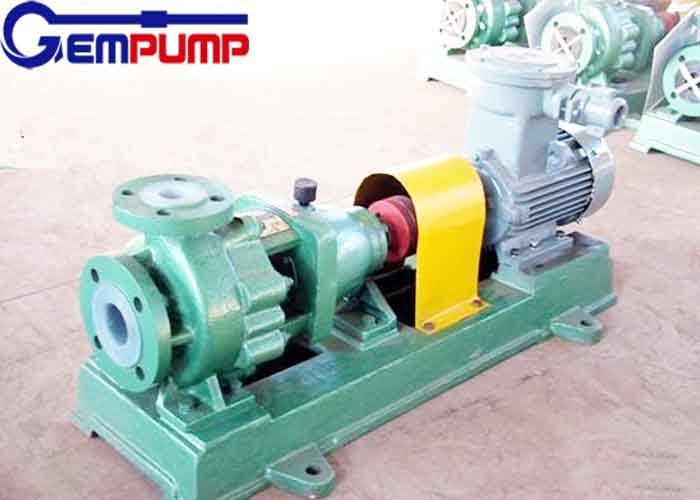

IHF Horizontal End Suction Centrifugal Chemical Pumps Anti-Corrosion Chemical Pump
IHF Anti-Corrosion Chemical Pump Application
IHF series fluoroplastic pumpfor single stage, single,cantilever centrifugal pumps, pump adopts metal shell lining fluorine plastic impeller, pump cover, using metal embedded parts outsourcing fluorine plastic pressure molding. According to international standard ISO2858 design. The product structure is reasonable and reliable performance. Widely used in automobile manufacturing pickling process, acid and alkali manufacturing, painting process, non-ferrous metal smelting,the electrolyte transport project of chlorine ion membrane water and wastewater treatment, electroplating, pesticide industries.
Operating temperature-2:0℃~120℃
|
Performance
|
|||
|
Motor
|
Motor power
|
kw
|
1.5
|
|
Speed
|
rpm/min
|
2900
|
|
|
Voltage
|
v
|
220/380
|
|
|
Ingress protection
|
~
|
55
|
|
|
insulativity
|
~
|
F
|
|
|
Main performance parameters
|
Suction capacity
|
m3/h
|
6.3
|
|
Inlet Diameter
|
mm
|
DN40/DN25
|
|
|
Material
|
pump casing
|
Cast iron
|
|
|
impeller
|
F46
|
||
1.For the pump of a high head, a check valve shall also be mounted on the pipeline at the outside end of the exit flow
control valve so as to prevent the water hammer destruction at an abrupt stop.
2.The installation height of the pump shall conform the net positive suction head of it and both pipeline loss and medium temperature need to beconsidered.
3.When the pump is used with a suction stroke, mount a foot valve at the end of the incoming water pipe, do not leave too many curved conduits with both inlet and outlet pipelines and make sure of non-water, non-air leaks.
4. It will be better for a filtering screen to be set on the inlet pipeline so as toprevent im purities from gettinginto the
impeller and the effectivearea of the screen shallbe 3-4 times that of the incoming water pipe so as to ensure the liquid to go through smoothly.
IHF Centrifugal Anti-Corrosion Pumps Parameters:
| Model |
Capacity (m3/h) |
Head (m) |
Power (kw) |
Inlet/outlet diameter (mm) |
| IHF32-25-125 | 5 | 20 | 1.5 | 32/25 |
| IHF32-25-125A | 4.5 | 16 | 1.1 | 32/25 |
| IHF32-25-160 | 5 | 32 | 2.2 | 32/25 |
| IHF32-25-160A | 4.5 | 28 | 1.5 | 32/25 |
| IHF40-32-125 | 6.5 | 20 | 2.2 | 40/32 |
| IHF40-32-125A | 5.6 | 16 | 1.5 | 40/32 |
| IHF40-32-160 | 6.5 | 32 | 2.2 | 40/32 |
| IHF40-32-160A | 5.6 | 28 | 1.5 | 40/32 |
| IHF50-32-125 | 20 | 12.5 | 2.2 | 50/32 |
| IHF50-32-125A | 11 | 11 | 1.5 | 50/32 |
| IHF50-32-160 | 12.5 | 32 | 4 | 50/32 |
| IHF50-32-160A | 11.7 | 28 | 3 | 50/32 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 50/32 |
| IHF50-32-200A | 11.7 | 44 | 5.5 | 50/32 |
| IHF50-32-250 | 12.5 | 80 | 11 | 50/32 |
| IHF50-32-250A | 11.7 | 70 | 7.5 | 50/32 |
| IHF65-40-200 | 25 | 50 | 11 | 65/40 |
| IHF65-50-125 | 25 | 20 | 3 | 65/50 |
| IHF65-50-125A | 22.3 | 16 | 2.2 | 65/50 |
| IHF65-50-160 | 25 | 32 | 5.5 | 65/50 |
| IHF65-50-160A | 23.3 | 28 | 4 | 65/50 |
| IHF65-50-200 | 25 | 50 | 11 | 65/50 |
| IHF65-50-200A | 23.3 | 44 | 7.5 | 65/50 |
| IHF65-50-250 | 25 | 80 | 11 | 65/50 |
| IHF65-50-250A | 23.3 | 70 | 15 | 65/50 |
| IHF80-65-125 | 50 | 20 | 5.5 | 80/65 |
| IHF80-65-125A | 45 | 16 | 4 | 80/65 |
| IHF80-65-160 | 50 | 32 | 11 | 80/65 |
| IHF80-65-160A | 45 | 28 | 7.5 | 80/65 |
| IHF80-50-200 | 50 | 50 | 15 | 80/50 |
| IHF80-50-200A | 45 | 44 | 11 | 80/50 |
| IHF80-50-250 | 50 | 80 | 30 | 80/50 |
| IHF80-50-250A | 45 | 70 | 22 | 80/50 |
| IHF100-80-125 | 100 | 20 | 11 | 100/80 |
| IHF100-80-125A | 89 | 16 | 7.5 | 100/80 |
| IHF100-80-160 | 100 | 32 | 15 | 100/80 |
| IHF100-80-160A | 93.5 | 28 | 11 | 100/80 |
| IHF100-65-200 | 100 | 50 | 30 | 100/65 |
| IHF100-65-200A | 93.5 | 44 | 22 | 100/65 |
| IHF100-65-250 | 100 | 80 | 45 | 100/65 |
| IHF100-65-250A | 93.5 | 70 | 37 | 100/65 |
FAQ:
Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
Q2: What's your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.
Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.
Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz
Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
