Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | ISG40-160 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Inline Transfer Vertical Pump Pipeline | Power: | Electric Motor |
|---|---|---|---|
| Material: | Cast Iron/ Stainless Steel | Seal: | Packing Seal,Mechanical Seal |
| Voltage: | AC220V AC380V AC415V/50HZ | Application: | Irrigation And Agriculture |
| Highlight: | Single Suction Vertical Inline Pump,125m Lift Vertical Inline Pump,5m lift single stage vertical pump |
||

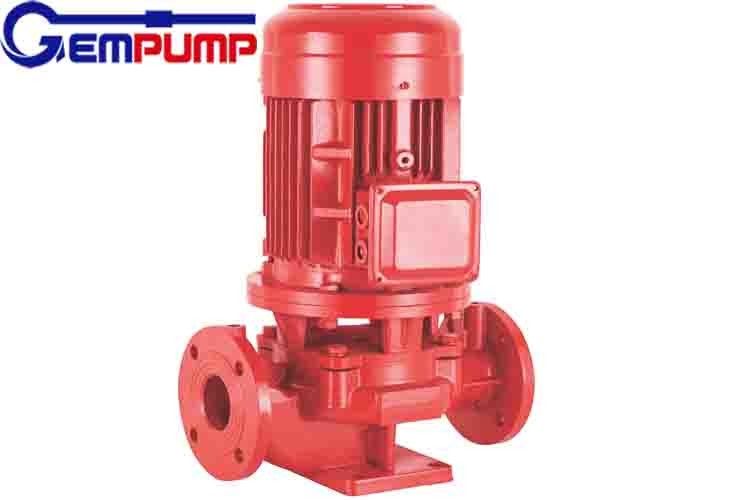

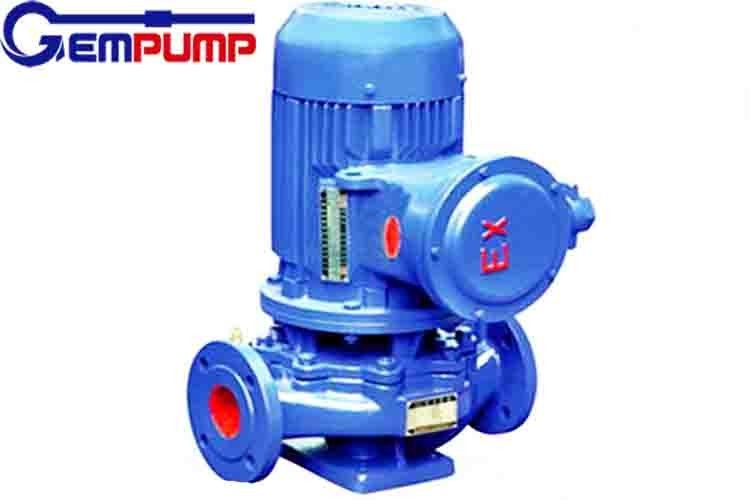

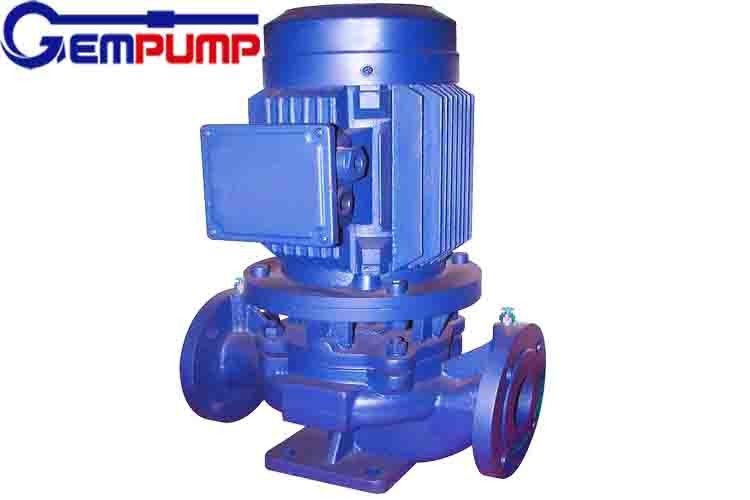

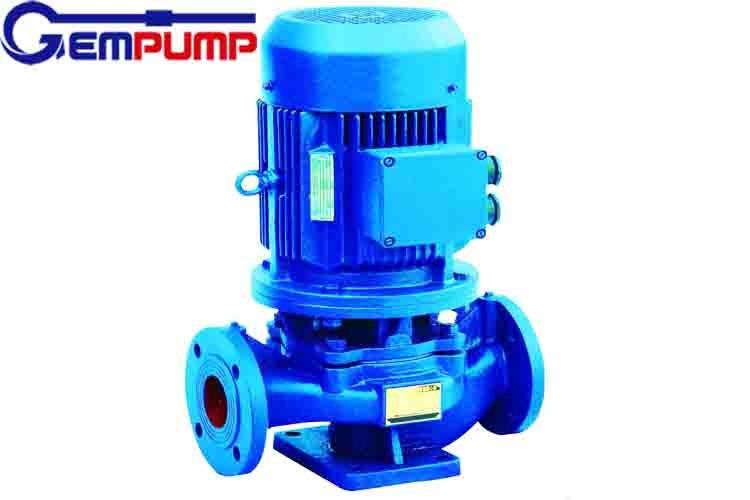

Isg Electric Single-Stage Single-Suction Vertical Pipeline Booster Centrifugal Pipe Pump
Products Name: ISG Single-stage Single-suction Vertical Pipeline Centrifugal pump
Conditions of use:
Note LISG is applicable to transport temperature does not exceed 80 CELSIUS water and similar to water.
The scope of performance parameter:
1. The flow of Q=2.5 ~ 400m3/h
2. Lift H=5 ~ 125m
3. Speed n=1480/2950r/min
4. Power P=0.55 ~ 135kW
5. Diameter of inlet Dna=40 ~ 80mm
6. Outlet diameter DNm=32 ~ 65mm
| fault phenomenon | failure cause | elimination methods |
| The manual is normal Automatic transmission failure |
1.No power supply or one or two phase power supply is needed | Check all phases of power supply and restore power supply |
| Water level is too low | Put water in the sink |
|
| The motor burned | Repair or replace the motor |
|
| 1. Line is loose | Check wiring and tighten connectors |
|
| 2. Frequency converter malfunction | Check the fault content, check the cause according to the frequency converter manual, and restart after reset.Or disconnect the inverter power supply for a few seconds, the inverter fault reset before starting. | |
| 3 The frequency converter is damaged | Repair or replace | |
| 4. Pressure switch damage | Repair or replace | |
| 5 The pressure transmitter is damaged | Repair or replace | |
| 6. Switch failure | Repair or replace | |
| Pump non - suction pressure gauge pointer to beat violently | Insufficient water supply for perfusion, air leakage at the connection between pipeline and instrument | Check pipeline and bottom valve, refill water diversion. Tighten air leakage |
The pump consumes too much power |
Too much flow, impeller wear |
Check whether the pump shaft is bent, replace the impeller, close the outlet valve to reduce the flow |
Application:
1. Send the fresh water
2. Suitable for industry and city's giving and draining off water
3. It is convenient to form a complete set with other apparatus
4. High efficiency, low noise
5. There are cold water types, hot water type, high temperature type, chemical industry type, oil type
6. Performance is reliable
7. International standard
Performance and Advantages:
Highly efficiency, Energy saving, With tube-type structure, easy for installation, Electro-mechanically integrated design, Space efficient,
Easy for service just by disassembling the nut of the pump bonnet and taking out the motor and the actuator unit. Wide application scope.
Performance data:
| MODEL | CAPACITY | HEAD | EFFECIENCY | POWER |
| (m 3 /h) | (m) | (%) | (kw) | |
| 15-80 | 1.5 | 8 | 34 | 0.18 |
| 20-110 | 2.5 | 15 | 34 | 0.37 |
| 20-160 | 2.5 | 32 | 25 | 0.75 |
| 25-110 | 4 | 15 | 42 | 0.55 |
| 25-125 | 4 | 20 | 36 | 0.75 |
| 25-125A | 3.6 | 16 | 35 | 0.55 |
| 25-160 | 4 | 32 | 32 | 1.5 |
| 25-160A | 3.7 | 28 | 31 | 1.1 |
| 32-125 | 5 | 20 | 44 | 0.75 |
| 32-125A | 4.5 | 16 | 43 | 0.5 |
| 40-100 | 6.3 | 12.5 | 54 | 0.55 |
| 40-100A | 5.6 | 10 | 52 | 0.37 |
| 40-125 | 6.3 | 20 | 46 | 1.1 |
| 40-125A | 5.6 | 16 | 45 | 0.75 |
| 40-160 | 6.3 | 32 | 40 | 2.2 |
| 40-160A | 5.9 | 28 | 39 | 1.5 |
| 40-160B | 5.5 | 24 | 38 | 1.1 |
| 40-200 | 6.3 | 50 | 33 | 4 |
| 40-200A | 5.9 | 44 | 31 | 3 |
| 40-200B | 5.3 | 36 | 29 | 2.2 |
| 40-250 | 6.3 | 80 | 28 | 7.5 |
| 40-250A | 5.9 | 70 | 28 | 5.5 |
| 40-250B | 5.5 | 60 | 27 | 4 |
| 40-100(I) | 12.5 | 12.5 | 62 | 1.1 |
| 40-100(I)A | 11 | 10 | 60 | 0.75 |
| 40-125(I) | 12.5 | 20 | 58 | 1.5 |
| 40-125(I)A | 11 | 16 | 57 | 1.1 |
| 40-160(I) | 12.5 | 32 | 52 | 3 |
| 40-160(I)A | 11.7 | 28 | 51 | 2.2 |
| 40-160(I)B | 10.4 | 22 | 50 | 1.5 |
| 40-200(I) | 12.5 | 50 | 46 | 5.5 |
| 40-200(I)A | 11.7 | 44 | 45 | 4 |
| 40-200(I)B | 10.6 | 36 | 44 | 3 |
| 40-250(I) | 12.5 | 80 | 38 | 11 |
| 40-250(I)A | 11.6 | 70 | 38 | 7.5 |
| 40-250(I)B | 10.8 | 60 | 37 | 7.5 |
| 40-250(I)C | 10 | 52 | 36 | 5.5 |
| 50-100 | 12.5 | 12.5 | 62 | 1.1 |
| 50-100A | 11 | 10 | 60 | 0.75 |
| 50-125 | 12.5 | 20 | 58 | 1.5 |
| 50-125A | 11 | 16 | 57 | 1.1 |
| 50-160 | 12.5 | 32 | 52 | 3 |
| 50-160A | 11.7 | 28 | 51 | 2.2 |
| 50-160B | 10.4 | 22 | 50 | 1.5 |
| 50-200 | 12.5 | 50 | 46 | 5.5 |
| 50-200A | 11.7 | 44 | 45 | 4 |
| 50-200B | 10.6 | 36 | 44 | 3 |
| 50-250 | 12.5 | 80 | 38 | 11 |
| 50-250A | 11.6 | 70 | 38 | 7.5 |
