| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | DG6-25X6 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Multistage Pump For Mining Industry | Warranty: | 1 Year |
|---|---|---|---|
| Pressure: | High Pressure | Theory: | Multistage Centrifugal |
| Application: | Drinking Water Treatment, Industrial Boilers | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Seal: | Mechanical Seal,Packing Seal |
| Highlight: | DG Series Horizontal Multistage Centrifugal Pump,Gold Mining Multistage Centrifugal Pump,DG Series multistage horizontal pump |
||

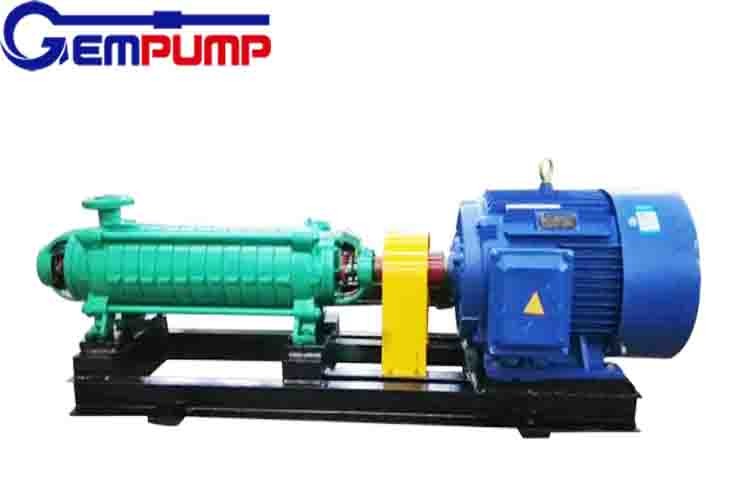

Horizontal Anti-Corrosive Centrifugal Gold Mine Tail Multistage Water Pump
Multistage Water Pump Overview
D(DF,DY) DG series is a horizontal, single suction and multi-stage centrifugal pump which adopts the hydraulic model of efficient and energy-saving product.
| Product Name | Horizontal multistage centrifugal bolier water pump |
| Material | Cast iron, stainless steel |
| Standard | ISO, CE |
| Flow rate | 3.75~840m3/h |
| Head | H=19~684m(Low/middle pressure) H=409~1056m(Sub-high pressure) |
| Voltage | 220V/380V/415V/460V or as customer required |
| Working temperature | -20ºC to +150ºC |
| Warranty | 12 months |
| Liquid | Transport clear water without solid particles(grinding material) Suspended substnces or other liquids with similar physical and chemical properties as clear water. Transport hot water, oil products, corrosive or abrasive media and so on by means of changing the pump's material(or the material of the pump's flow-through part) and sealing mode and adding a cooling system. |
| Applilcation | D series it's applicable for water supply and drainage works in mines, plants and cities. DF series can be used to transport corrosive liquids containing no solid particles. DY series can be used to transport oil and petroleum containing no solid particles. DG series it's applicable for water supply in low/middle/sub-high pressure boliers as well as for the high-pressure water supply and drainage in plants or cities. |
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
