Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | CQB65-40-250F |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SET/Month |
| Product: | Fluorine Plastic Magnetic Pump | Place Of Orign: | China |
|---|---|---|---|
| Application: | Aicd,Alkali,Wastewater Transport | Warranty: | 2 Year |
| Lead Time: | 10 Days | Motor Voltage: | AC220V,AC380V,AC415V |
| Pump Material: | FEP, PFA, PTFE, PVDF, PP | Power: | Electric Motor |
| Structure: | Single Stage Pump | Seal: | Mechanical Seal,no Leakage |
| Highlight: | Fluorine Plastic Magnetic Centrifugal Pump,CQB-F Magnetic Centrifugal Pump,18.5KW Plastic Magnetic Pump |
||
Leak-proof design.

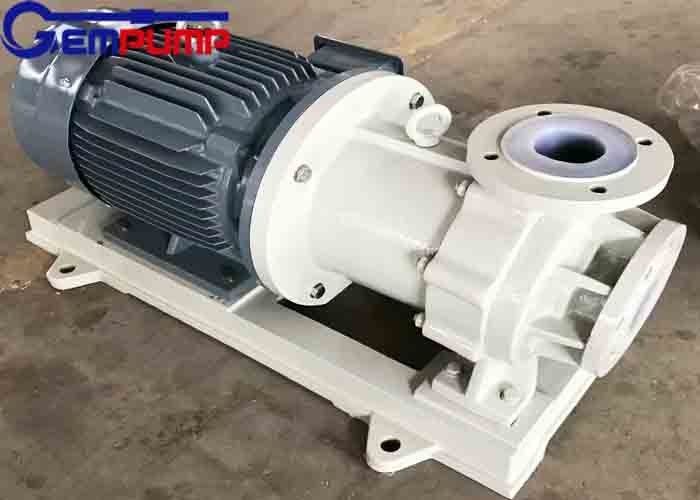

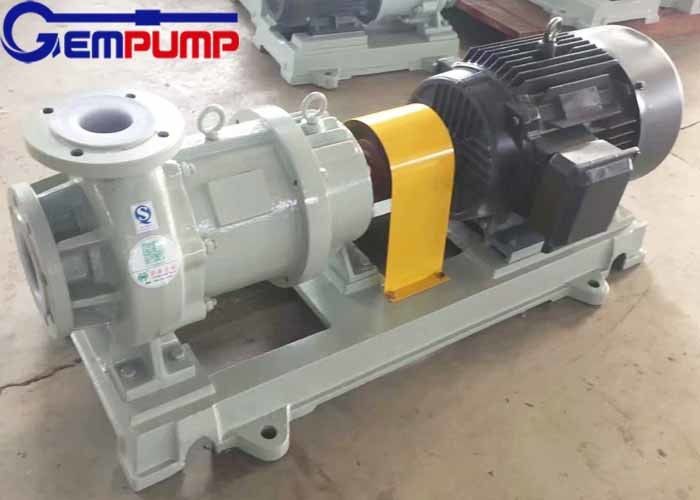

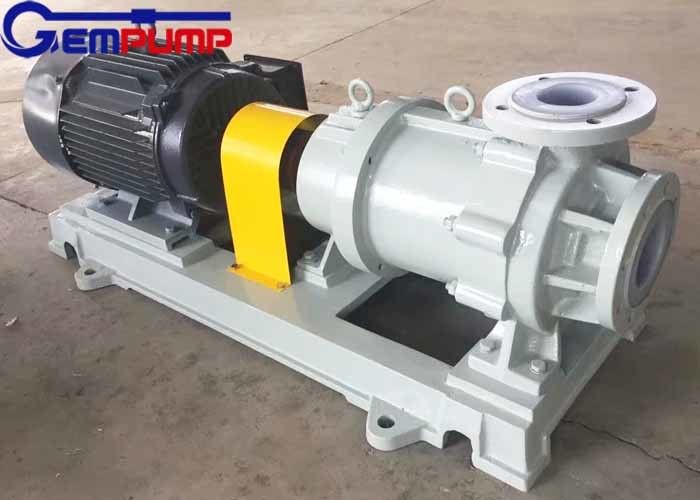

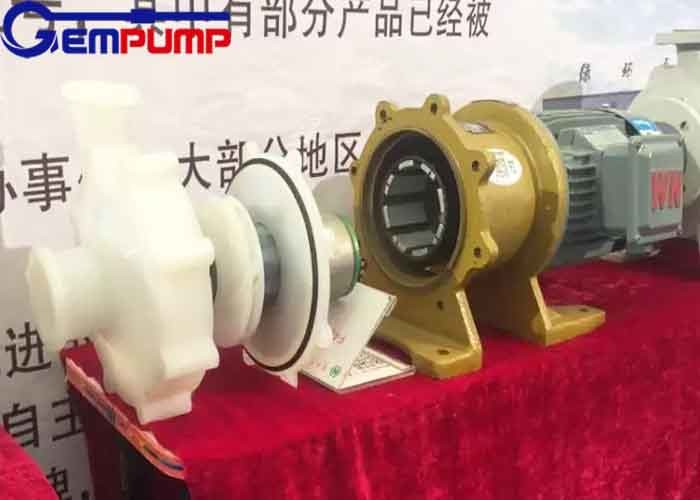

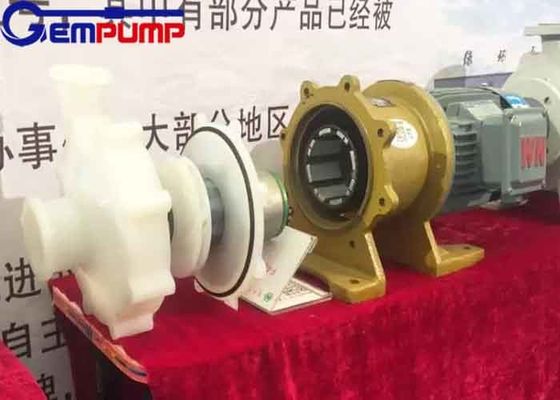

Sealless Teflon lined magnetic drive pump, driven by magnetic coupling indirectly, motor shaft and pump chamber is completely sealed, avoid pump leakage problem and use site pollution.
Anit-corrosive
Wetted part material is PTFE fused with FEP, can transfer low and high concentration acid, alkali, strong oxidizer etc corrosive liquid.
Robust pump casing.
The part contacting with liquid material is fluoroplastic, pump casing material is cast iron, and pump casing can bear part of piping and mechanical impact.
Low maintenance costs and long service life.
Cost-intensive wearing parts are canceled by the seal-less method of construction, therefore, reduced maintenance costs and long service life. The structure is tightly, safety, and energy-saving.
Design Pressure: 1.6MPa
| Item | Model | Flow (m3/h) |
Pump head (m) |
Efficiency % |
NPSHa (m) |
Inlet*outlet mm |
Speed (rpm) |
Power KW |
Pump and motor weight |
| 1 | CQB50-32-125F | 7 | 22 | 28 | 3.5 | 50*32 | 2900 | 2.2 | 70 |
| *12.5 | 20 | 42 | |||||||
| 15 | 19 | 46 | |||||||
| 2 | CQB50-32-125F | 7 | 33 | 30 | 3.5 | 50*32 | 2900 | 4 | 90 |
| *12.5 | 32 | 39 | |||||||
| 15 | 29 | 41 | |||||||
| 3 | CQB65-40-250FB | 15 | 82 | 35 | 4 | 65*40 | 2900 | 18.5 | 315 |
| *25 | 80 | 41 | |||||||
| 30 | 75 | 44 | |||||||
| 4 | CQB80-65-160F | 35 | 34 | 45 | 4.0 | 80*65 | 2900 | 11 | 260 |
| *50 | 32 | 60 | |||||||
| 60 | 28 | 52 | |||||||
| 5 | CQB80-50-200FA | 35 | 52 | 50 | 4 | 80*50 | 2900 | 18.5 | 320 |
| *50 | 50 | 60 | |||||||
| 60 | 45 | 60 | |||||||
| 6 | CQB80-50-250F | 35 | 82 | 45 | 5 | 80*50 | 2900 | 30 | 390 |
| *50 | 80 | 51 | |||||||
| 60 | 75 | 53 | |||||||
| 7 | CQB100-80-160F | 70 | 34 | 53 | 5 | 100*80 | 2900 | 18.5 | 260 |
| *100 | 32 | 58 | |||||||
| 120 | 30 | 60 | |||||||
| 8 | CQB100-65-200F | 70 | 52 | 55 | 4.5 | 100*65 | 2900 | 30 | 390 |
| *100 | 50 | 61 | |||||||
| 120 | 46 | 64 |
FAQ:
Can you supply pump qualified with ANSI and ASME standard?
Yes, our pump compliant with ISO / ASME/ANSI standard.
How can I purchase order without seeing the quality first?
If it is a big order, we can provide a sample for running testing at your plant.
How do you control the quality of the products?
Our production is strictly according to ISO 9001 standard and factory was established in 2010, have 10 years experience.
How to customize pumps and mechanical seals ?
Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
How can I pay for my items? What is the payment you can provide?
Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
L/C at sight
How long is warranty?
1 year for main construction warranty.
How long is production lead time?
Normally in 15 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-10 days.
What is the shipping terms you can provide ?
Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Who is in charge of after-sales?
Inside sales. It can save customer's time and high efficiency communicate.
Who is in charge of maintenance?
Local agent. Client is first, if pump running has any problem on site, our local agent will arrival the plant within 24 hours.
