Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | 40FSB-20L |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | Acid Horizontal Centrifugal Pump | Principle: | Centrifugal |
---|---|---|---|
Applications: | Chemical | Power: | Electric Motor |
Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
Connection: | Flange | Position: | Horizontal |
Material: | Fluoroplastic, Polyethylene | Seal: | Mechanical Seal |
High Light: | 2900RPM Horizontal Centrifugal Pump,42% Efficiency Horizontal Centrifugal Pump,2900RPM plastic centrifugal pump |

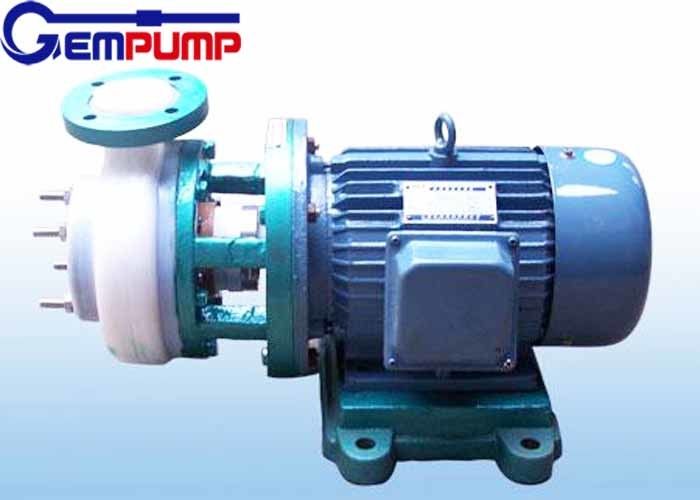

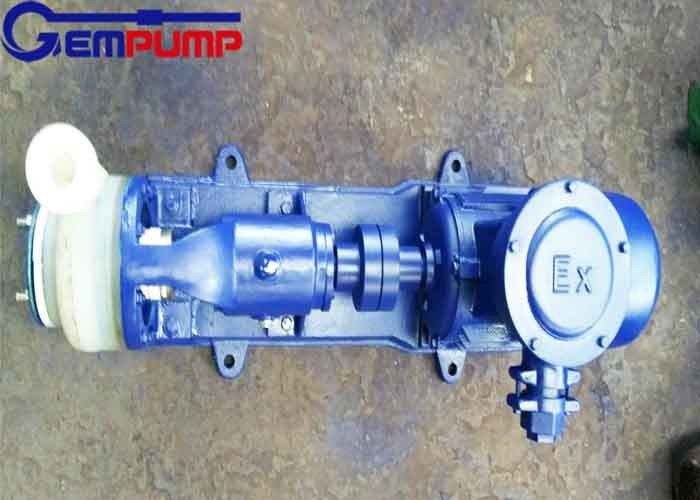

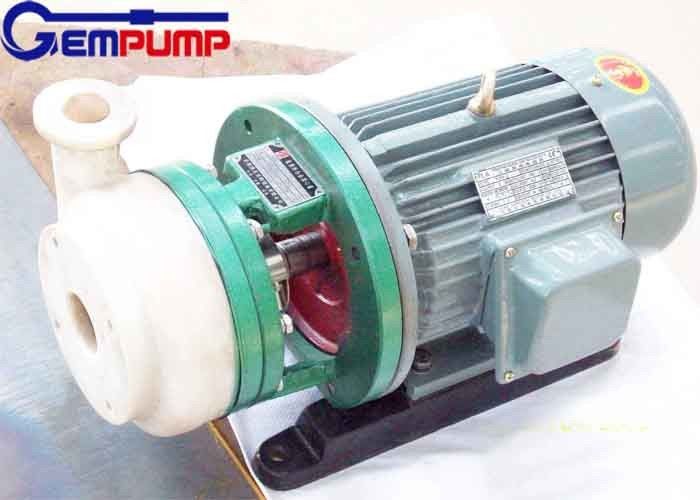

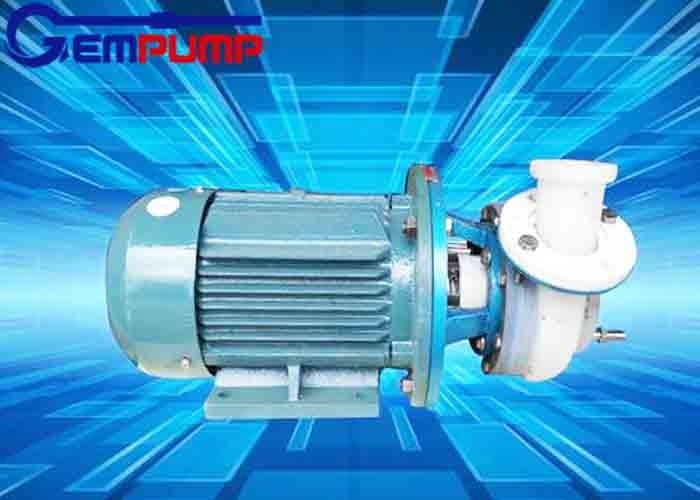

High Efficiency High Pressure Durable Wear Resistant Anti Acid Horizontal Centrifugal Pump
FSB Acid Resistant Pump Overview:
Type the FSB fluorine plastic alloy centrifugal pump designed according to the international standard, the pump body with metal shell lining fep (F46), pump cover, impeller and shaft sleeve are fluorine plastic with metal insert outsourcing whole sintering pressure molding, shaft seal mounted outside using bellows mechanical seal, static ring choose 99% alumina ceramic or silicon nitride, ring with four fluorine filling materials, corrosion resistant, suitable for conveying any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid and aqua regia, strong alkali, strong oxidizing agents, organic solvents, reductant and other harsh conditions of strong corrosive medium, is currently one of the strong corrosion resistant equipment in the world.
1. Pump body
|
2. Seal ring
|
3. Mechanical seal ring
|
4. Machine seal ring
|
5. Bearing
|
6. Bracket
|
7. oil seal
|
8. coupling
|
9. Protection cover
|
10. Impeller
|
11. Pump cover
|
12. Machine seal gland
|
13. bearing cover
|
14. Pump shaft
|
15. Machine seal gland
|
16. coupling
|
NO
|
Model
|
Flow
|
Head
|
power
|
Efficiency
|
Speed
|
|
|
m³/h (cu yd)
|
m (yd)
|
kw (hp)
|
%
|
r/min
|
1
|
25FSB-10L
|
1.5 (1.9)
|
10 (10.9)
|
1.5 (2.0)
|
29
|
2900
|
2
|
25FSB-18L
|
3.6 (4.7)
|
18 (19.6)
|
3 (4.0)
|
27
|
|
3
|
40FSB-15L
|
5 (6.5)
|
15 (16.4)
|
3 (4.0)
|
40
|
|
4
|
40FSB-20L
|
10 (13)
|
20 (21.8)
|
3 (4.0)
|
42
|
|
5
|
40FSB-30L
|
10 (13)
|
30 (32.8)
|
4 (5.3)
|
38
|
|
6
|
40FSB-40L
|
10 (13)
|
40 (43.7)
|
5.5 (7.3)
|
35
|
|
7
|
40FSB-50L
|
10 (13)
|
50 (54.6)
|
5.5 (7.3)
|
33
|
|
8
|
50FSB-20L
|
15 (19.6)
|
20 (21.8)
|
4 (5.3)
|
51
|
|
9
|
50FSB-25L
|
15 (19.6)
|
25 (27.3)
|
4 (5.3)
|
49
|
|
10
|
50FSB-30L
|
15 (19.6)
|
30 (32.8)
|
4 (5.3)
|
44.5
|
|
11
|
50FSB-40L
|
15 (19.6)
|
40 (43.7)
|
5.5 (7.3)
|
35
|
|
12
|
50FSB-50L
|
15 (19.6)
|
50 (54.6)
|
7.5 (10.0)
|
33
|
|
13
|
50FSB-63L
|
15 (19.6)
|
63 (68.8)
|
11 (14.7)
|
30
|
|
14
|
65FSB-32L
|
29 (37.9)
|
32 (34.9)
|
5.5 (7.3)
|
57
|
|
15
|
65FSB-40L
|
29 (37.9)
|
40 (43.7)
|
11 (14.7)
|
53
|
|
16
|
65FSB-50L
|
29 (37.9)
|
50 (54.6)
|
15 (21.7)
|
46
|
|
17
|
65FSB-64L
|
29 (37.9)
|
64 (69.9)
|
18.5 (24.8)
|
44
|
|
18
|
80FSB-20L
|
50 (65.3)
|
20 (21.8)
|
5.5 (7.3)
|
69
|
|
19
|
80FSB-30L
|
50 (65.3)
|
30 (32.8)
|
7.5 (10.0)
|
64
|
|
20
|
80FSB-34L
|
50 (65.3)
|
34 (37.1)
|
11 (14.7)
|
64
|
|
21
|
80FSB-40L
|
50 (65.3)
|
40 (43.7)
|
15 (21.7)
|
60
|
|
22
|
80FSB-50L
|
50 (65.3)
|
50 (54.6)
|
18 (24.8)
|
53
|
|
23
|
80FSB-55L
|
50 (65.3)
|
55 (60.1)
|
18.5 (24.8)
|
47
|
|
24
|
80FSB-80L
|
50 (65.3)
|
80 (87.4)
|
37 (49.6)
|
36
|
|
25
|
100FSB-32L
|
100 (130.7)
|
32 (34.9)
|
22 (29.5)
|
70
|
1. Chlor-alkali industry: lye, electrolyte, refined salt water of ion film caustic soda, chlorine solution, sodium hypochlorite, hydrochloric acid, sulfuric acid.
2. Non-ferrous metal smelting: conveyance of various sorts of acidic solutions, electrolytes, sewage in wet-process smelting;
3. Iron and steel industry: electroplating, pickling, etc;
4. Acid production: hydrochloric acid, nitric acidsulfuric acid, phosphoric acid, acetic acid, etc;
5. Paper-making industry: agents, bleaching liquid, sewage, etc;
6. Fermentation industry: intermediates, lactic acid, citric acid, food additives, beer, various ferment serum, etc;
7. Environmental protection: various sorts of medicaments, acid- and alkali- containing wastewater, etc.
